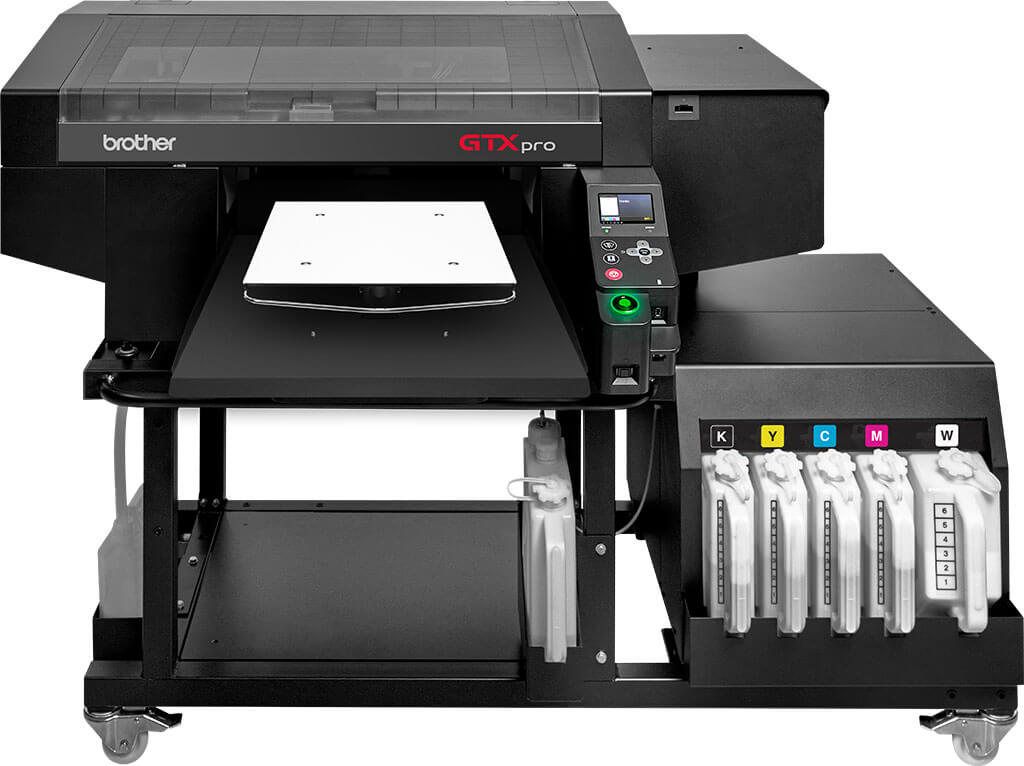

The DTG printer designed with mass production in mind.
What makes the GTXpro B the right choice for your garment decorating business? For starters, Brother builds only industrial-grade garment printers, with print heads, software and firmware that we manufacture. Plus, we’ve developed a proprietary bulk feed system for our own specially formulated inks for even less maintenance time. That attention to every detail means we know that every component is up to the rigors that your business demands. That’s what makes the GTXpro B the cornerstone of your production process and the ideal way to grow your business.
Description
Technical Specification
| MACHINE SIZE | 70” x 51” x 48” (1780mm x 1300mm x 1210mm) *with recommended stand |  |
| MACHINE WEIGHT | Approx. 364 lbs (165kg) including platen *not including stand | |
| PLATEN SIZES | Maximum Print Size is 16″ x 21″ 40,6cm x 53,3cm | |
| INCLUDED PLATEN SIZE | 14″ x 16″ (35,6cm x 40,6cm) | |
| PRINT HEAD TYPE | Brother manufactured On Demand Piezo Head | |
| INK DELIVERY | Advanced Ink System (AIS) contains 7.2 L white ink tank and 4.3L CMYK ink tanks. |  |
| INK TYPE | Water-based pigment ink |  |
| NUMBER OF PRINT HEADS | 2 print heads: 1 for White Inks; 1 for CMYK Inks |  |
| PRINT RESOLUTION | 1200 x 1200 dpi | |
| PRINT MODE | Single or double CMYK. Underbase and highlight for white. | |
| ENVIRONMENT |  |
|
| DATA OUTPUT | USB, File Output, LAN | |
| POWER SUPPLY | AC 100V-240V, 50/60Hz ± 1Hz | |
| POWER CONSUMPTION | 0.8A(average) (Reference: 0.4A – during circulation) | |
| INK CURE | Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer’s dryer is used. |  |
| PRE-TREATMENT | Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer’s instructions. Pre-treatment is necessary for white ink. |
Extended Information
Software
| OS | macOS 10.14 Mojave, macOS 10.15 Catalina, Windows 8.1 (64bit), Windows 10 (64bit) |  |
| INTERFACE | USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T) USB Flash Memory(Under 32GB, FAT32 format) |
|
| DRIVER OPERATING CONDITIONS | 2GHz CPU (minimum recommendation) 4GB RAM (minimum recommendation) | |
| DISPLAY RESOLUTION | XGA(1024×768) (minimum recommendation) | |
| RECOMMENDED APPLICATIONS | Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, CoreIDRAW® 2018/2019 (Windows) |  |
Take advantage of Brother’s own advanced Innobella Textile Inks formulation to print with greater vibrancy and a larger color range. That chemistry, combined with the next generation AIS (Advanced Ink System) bulk feed feature, gives you the advantage of having even less waste and greater efficiencies on every run. Your prints will maintain their integrity even longer and stand up to multiple washings, all while spending less time on maintenance and refills.
Ink Chemistry
| MORE COLORS, BRIGHTER COLORS | Take your prints and designs farther and make them more colorful than you ever dreamed possible. Our newly formulated inks actually provide a bolder, wider range of colors that make it simple to reproduce designs more accurately and with a visible increase in vibrancy. |  |
| ENVIRONMENTALLY FRIENDLY | Our bolder, brighter Innobella Textile Inks are water-based pigment inks and are ECO PASSPORT by OKEO-TEX® certified and CPSIA compliant. The bulk packaging uses less plastic thanks to the new reusable tanks so there is less waste and less impact on the environment. |  |
| EXCEPTIONAL WASHABILITY | Designs printed with Innobella Textile Inks are meant to be worn, not worn out. The special formulation combats the chemicals found in typical laundry detergent and withstands the rubbing and scraping of zippers and buttons. The result is a great looking garment that looks brighter, longer, with proven washability as evidences by AATCC wash tests, where our inks score 4.0 or higher on every test. |  |
| TESTED AND CERTIFIED | Safety must always be top of mind with any product, and with Innobella Textile Inks you can be confident that your products are safe for all ages. |  |
Additional information
| Weight | 340 lbs |
|---|---|
| Dimensions | 51 × 70 × 48 in |
