With the 30″ and 54″ VersaUV LEC printer/cutters, you can easily create vibrant prototypes and short runs on a variety of actual press substrates, in one seamless workflow. Flexible bag media. Folding cartons. Pressure-sensitive labels. Clear film. CMYK. White, Varnish, Emboss, Crease and Contour Cut. All with a single device.

Feel the color.

One of the most powerful features of the VersaUV is the ability to use Eco-UV Clear Coat ink to create a wide range of special effects, from matte or gloss finishes to stunning spot treatments. By laying down multiple layers of Clear Coat, and automatically repositioning the UV lamps, the LEC allows you to simulate embossing as well as create truly unique custom-textured effects from water droplets to faux leather to crocodile skin…even Braille.

Integrated printing and contour cutting.

The LEC series streamlines the production process by automatically contour cutting printed graphics, saving valuable time and effort. The LEC can contour cut through the top layer of lined media or create a perforated cut on non-lined media such as card stock. By switching out the cutting tool, the LEC can also crease your media for easy, accurate folding.

Advanced UV inks

Instant drying and flexible, Eco-UV ink delivers high density and a wide color gamut. Choose from two formulations – original Eco-UV in CMYK, White and Clear, or Eco-UV S in CMYK and White. Both Eco-UV formulations produce prints that require no degassing and can be stretched around curved surfaces and edges without cracking. Eco-UV S stretches over 200%, ideal for printing on shrink sleeves and wraps and for thermo-forming applications.

Choose from four ink configurations

For indoor graphics, Eco-UV inks offer superior scratch and chemical resistance. Outdoors, Eco-UV inks last up to six months without coating (both formulations), and up to two years when Clear Coat is applied as a finish (Eco-UV only).

Eco-UV inks are packaged in no-mess 500ml cartridges and safe after curing. Proper ventilation is required. The LEC series is ventilation-ready, featuring a ventilation hood for easy connection with an air filtration system.

MORE DETAILS AND SPECIFICATIONS ON ECO-UV INKS

Roland Intelligent Pass Control

Across a wide variety of applications and media,
Roland Intelligent Pass Control technology delivers outstanding image quality in all print modes while eliminating virtually any signs of banding. This patent-pending system ensures that graphics look great when viewed indoors or outdoors, up close and at a distance.

Production print speeds

The LEC-540 features larger UV LED lamps to expedite production. Equipped with six high-precision print heads, the LEC-540 delivers a maximum print speed of 126 sqft./hr. in High Speed mode. The LEC-330 prints up to 101 sqft./hr. Each print mode has been meticulously fine tuned for the head configuration to deliver optimized performance and superior print quality.

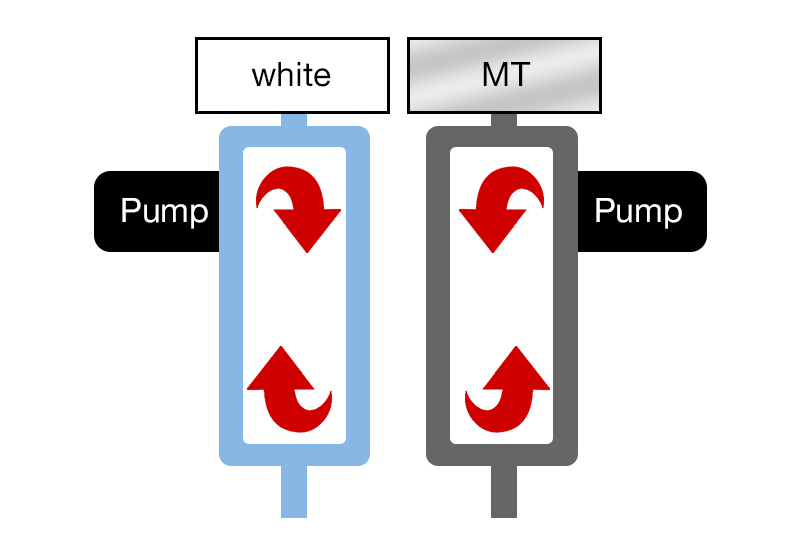

Efficient ink usage.

The VersaUV’s Automated Ink Circulation System prevents pigments from settling in the ink lines for consistent density and reduced white and clear ink waste. The circulation system dramatically lowers running costs while ensuring exceptional image quality throughout the longest production runs.

Advanced media take-up system

The LEC series includes an automated media
take-up system to facilitate precision unattended printing and cutting. This pre-assembled unit includes an advanced tension-controlled take-up system for optimum media feed and tracking.

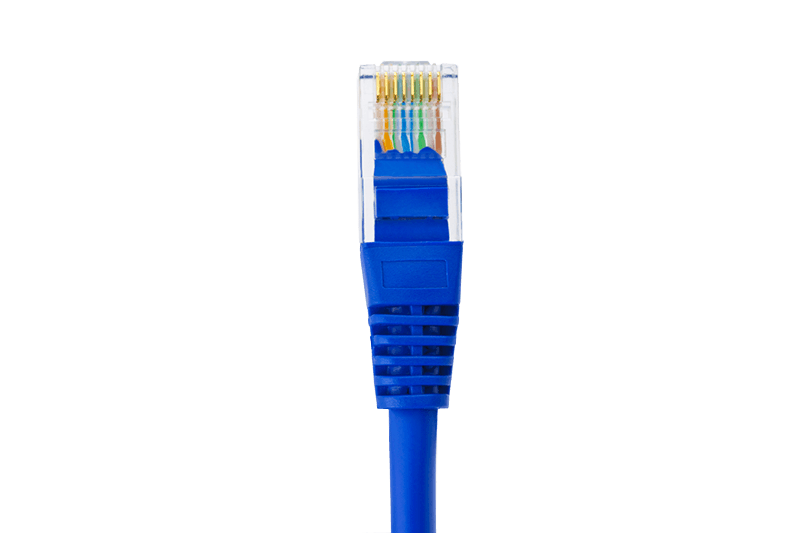

Ethernet connectivity

Roland understands that busy shops need to maximize the layout of their workstations and printing equipment. High-speed Ethernet network connectivity is built-in standard to the LEC series, so it can quickly process gigabytes worth of image data for everyone in your shop.

Roland OnSupport online production assistance

Roland OnSupport online customer support system allows users to remotely track the status of LEC activities. The system sends e-mails to users notifying them of important information such as when a job is completed and when ink is running low. With Roland OnSupport, users can also quickly download firmware updates and important product information by accessing an exclusive website with just one mouse click.WATCH THE ONSUPPORT VIDEO

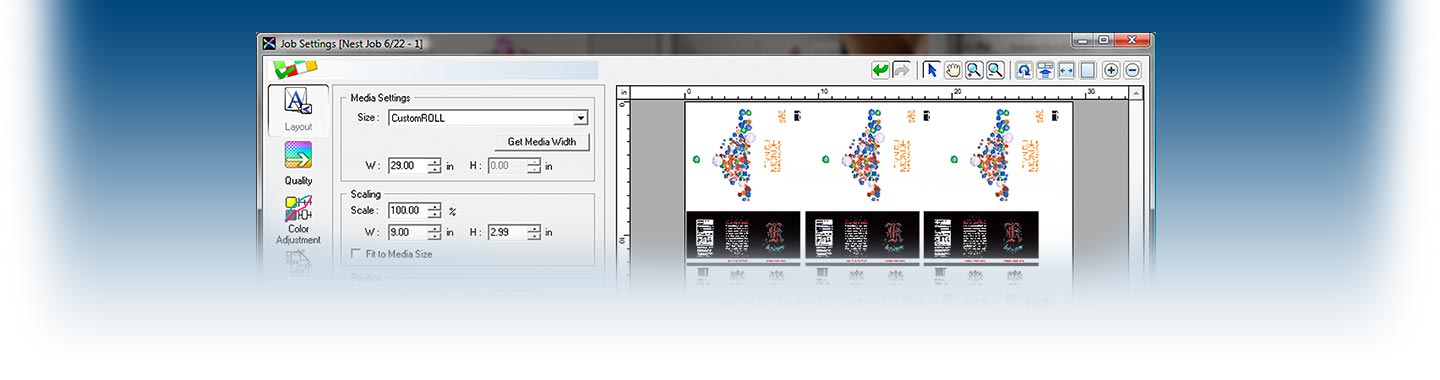

Includes VersaWorks? RIP with enhanced productivity tools

Based on the latest Adobe? CPSI engine (3019), VersaWorks? combines powerful RIP features with an easy-to-use interface for outstanding results. Take full advantage of VersaUV capabilities with a host of features including a Predictive Ink Calculator, Spot Color Replacement Tool, a Built-in Pantone? Spot Color Library and a Roland Texture Library that includes a collection of ready-to-go Clear Coat texture effects.

VIEW VERSAWORKS® ADVANCED PRODUCTIVITY TOOLS VIDEO

Roland quality and reliability come standard

As proof of its unmatched reliability, the VersaUV comes with Roland’s industry-best Two-Year Trouble-Free Warranty*. All that’s required for this bonus is return of the registration card with installation information within 60 days of your purchase and confirmation* that Roland inks are running in the machine.

Roland?s international ISO certifications are your assurance of quality products and service. We build reliable, high-performance products and back them up with first-rate customer service and a wide variety of supplies and accessories.

*Registration within 60 days purchase and continuous exclusive use of Roland inks during the first two years of ownership are required to qualify for the free second year of limited warranty coverage. See warranty page for details.

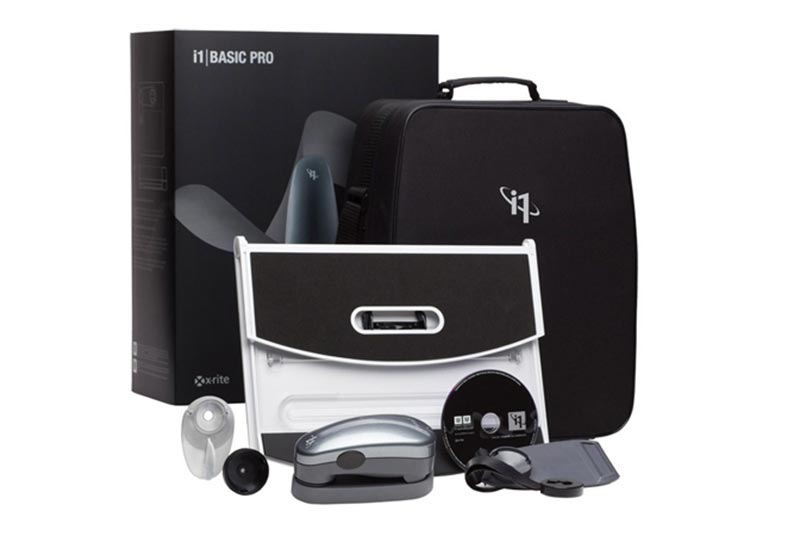

Optional X-Rite Color Management Tools

For precise color management, Roland offers X-Rite’s i1Basic Pro 2 for calibrating your monitor to display accurate digital color as well as, linearizing your Roland printer for consistent output. Upgrade to the X-Rite i1Publish Pro 2, which includes the same capabilities, as well as complete ICC/ICM media profiling. Both packages include the new i1 Pro 2 spectrophotometer, Pantone? Color Manager software and an accessories package. The i1Publish Pro 2 also includes i1Profiler software.

BUY AT THE ROLAND DGA STORE

Technical Specification

MODEL		LEC-330
Printing method / Cutting method		Piezoelectric inkjet / Grit roller feed
Acceptable media	Width	10.2 to 54 in. (260 to 1371 mm)	7.2 to 30 in. (182 to 762 mm)
	Thickness	Printing: Maximum 39 mil (1.0 mm) with liner Cutting : Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner
	Roll outer diameter	Maximum 8.3 in (210 mm)	Maximum 7.1 in (180 mm)
	Roll weight	Maximum 66 lb. (30 kg)	Maximum 44 lb. (20 kg)
Core diameter	2 in (50.8mm) or 3 in (76.2mm)
Printing/cutting width		Maximum 53 in (1346 mm)	Maximum 29 in (736 mm)
Ink cartridges	Type	Roland ECO-UV INK
	Capacity	220 ml (? 5 ml)
	Colors	5 colors + Clear coat (Cyan, Magenta, Yellow, Black, White and Clear coat)
	Configuration	CMYK+Gloss+White, CMYK+White+White or CMYK+Gloss+Gloss
Ink curing unit		Built-in ultraviolet-light emitter (UV-LED Lamp)
Printing resolutions		360×720 dpi, 720×720 dpi, 720×1440 dpi, 1440×1440 dpi
Acceptable blade tool		Roland CAMM-1 series cutter blade.
Cutting speed		0.4 (10 mm/s) to 23.6 in/s (600 mm/s) (0.4 to 11.8 in/s in media feed direction)
Blade force		30 to 300gf
Blade offset compensation		0 to 0.0591 in (0.000 to 1.500 mm)
Software resolution (when cutting)		0.000984 in/step (0.025 mm/step)
Distance accuracy (when printing)		Error of less than ? 0.3 % of distance traveled, or ? 0.012 in (0.3mm), whichever is greater.
Distance accuracy(When cutting)		Error of less than ? 0.4% of distance traveled, or ? 0.012 in (0.3 mm), whichever is greater. When distance correction ([CUTTING MENU] -[CALIBRATION]) has been preformed: error of less than ? 0.2 % of distance traveled, or ? 0.004 in (0.1mm), whichever is greater.
Repetition accuracy (When cutting)		? 0.004 in (0.1mm) or less
Alignment accuracy for printing and cutting		? 0.020 in (0.5mm) or less
Alignment accuracy for printing and cutting when reloading media		Error of less than ? 0.5% of distance traveled, or ? 0.012 in (3mm), whichever is greater
Media take-up system	Roll outer diameter	Maximum 8.3 in (210 mm)	Maximum 7.1 in (180 mm)
Media take-up system	Roll weight	Maximum 66 lb. (30 kg)	Maximum 44 lb (20 kg)
Interface		Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
Power-saving function		Automatic sleep feature
Power supply	Voltage and frequency	AC 100 to 240 V ? 10%, 50/60 Hz
Power supply	Required power capacity	Maximum 4.2 A
Power consumption	During operation	Maximum 370W
Power consumption	Sleep mode	Approx. 15.3W
Acoustic noise level	During operation	64dB (A) or less
Acoustic noise level	During standby	40dB (A) or less
Dimensions (with stand) [6]		115.2[W]x44.1[D]x49.6[H] in (2925[W]x1120[D]x1260[H] mm)	86.6 [W] x 32.3 [D] x 49.6 [H] in (2200[W] x 820 [D] x 1260 [H] mm)
Weight (with stand)		390.2 lb. (177 kg)
Environment	Power on	Temperature: 68? to 90?F (20? to 32?C) (72?F [22?C] or more recommended), Humidity: 35 to 80% (no condensation)
Environment	Power off	Temperature: 41? to 104?F (5? to 40?C), Humidity: 20 to 80% (no condensation)
Included items		Same as LEC-330/300A plus crease tool (XD-CT) and an additional blade (ZEC-U3050)	Stand, power cord, blade (ZEC-U5022), blade holder (XD-CH2), media clamps, replacement blade for sheet cutter, cleaning kit, Roland VersaWorks software RIP, User?s manual, etc.

Extended Information

Explore New Markets

With its ability to print CMYK plus white and clear on a vast range of actual press stocks, the VersaUV LEC series enables you to experiment with unique design options, materials and finishes. This revolutionary production platform is the creative professional’s secret weapon for producing superior image quality, contour cutting the most intricate shapes, and adding premium textured accents and finishes that bring your designs to life.

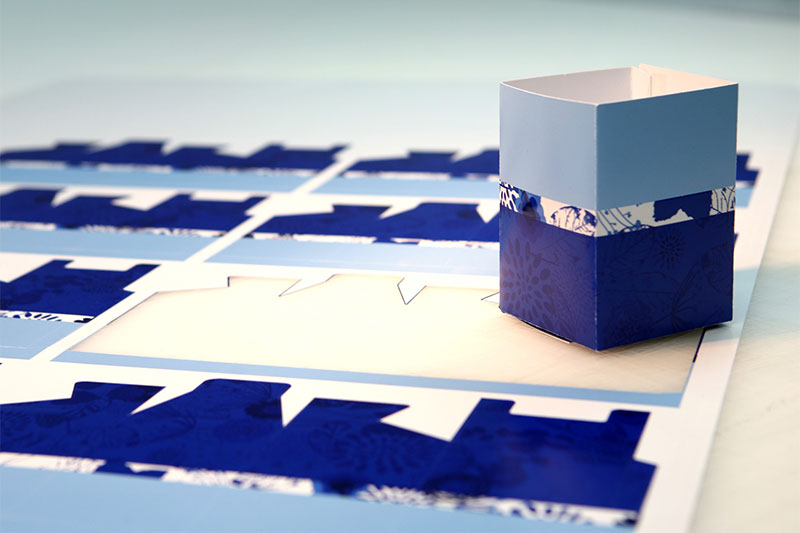

Folding Carton Workflow

Start with your choice of stock and your art file
The VersaUV will print, crease and die cut your folding carton
Pop out your prototype and assemble

Ideal Pre Press Device

The VersaUV is a very capable pre-press and proofing device that can save commercial printers the many costs associated with press downtime. In fact, each time a shop has to take a flexo or gravure press offline to print a proof or prototype, significant productivity and profits are lost. Flexo printing even a single proof or comp requires creating plates, adding labor and material costs to the job. The LEC series eliminates these issues for businesses and allows them to keep larger presses online for production. Support for color proofing with CGS ORIS Color Tuner, GMG Color Proof and FlexoProof/Dot Proof and EFI Print Pack 2 for Color Proof XF and Fiery XF RIP is available. With the ability to print directly to many offset, rotogravure and flexo stocks and the ability to simulate UV varnish and embossing, the LEC generates very realistic proofs at a fraction of the cost and time.

Perfect for Short Run Label Production

Print CMYK plus white on foils, BOPP, PE, PET film and offset printing stock. Clear coat adds three-dimensional effects. Variable data printing allows you to print a hundred personalized labels each with a different name, serial number or artwork. Perfect for prototyping a series of packages or production of custom, high-end wine bottles.

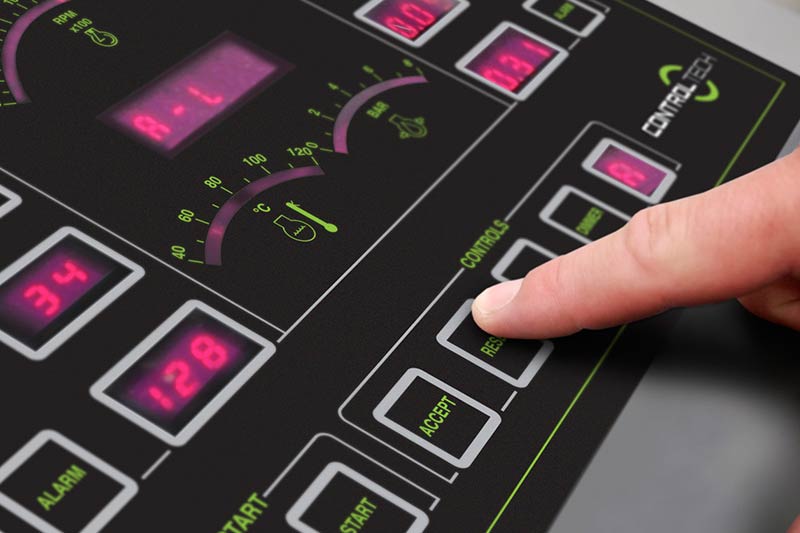

Membrane Panels

With the VersaUV, you can print a single membrane panel or several. The LEC accommodates reverse printing of CMYK, then prints white on polycarbonate stocks without the need to create screens for each color.

Specialty Graphics

With VersaUV, you can eliminate outsourcing for short production runs as well. In small quantities, you can easily produce truly unique, customized smart phone and notebook skins and other specialty graphics in virtually any shape, size and texture. Production is easy. With VersaUV, there are no plates or film to produce. Simply design on your personal computer, send your file to the printer, and VersaUV does the rest, printing and digitally die-cutting your finished print quickly and easily.

Custom Large Format Graphics

In addition to packaging prototypes and short-run labels, the 54″ VersaUV LEC-540 is perfect for wide-format graphics. Produce highly customized window graphics, wall wraps, trade show displays and interior décor items.
