Achieve sharp, vivid image quality across a wide range of applications. HP Thermal Inkjet technology produces a wide color gamut and sharp detail and achieves consistent results. Repeat, without surprises, print to print. Avoid the trial and error that costs you time. User-replaceable HP printheads are designed and tested with HP Latex Inks and the printer to provide consistent, high-resolution image quality and easy, productive, low-maintenance printing. Reduce the impact of printing on the environment—you can recycle HP 831 Latex Printheads.

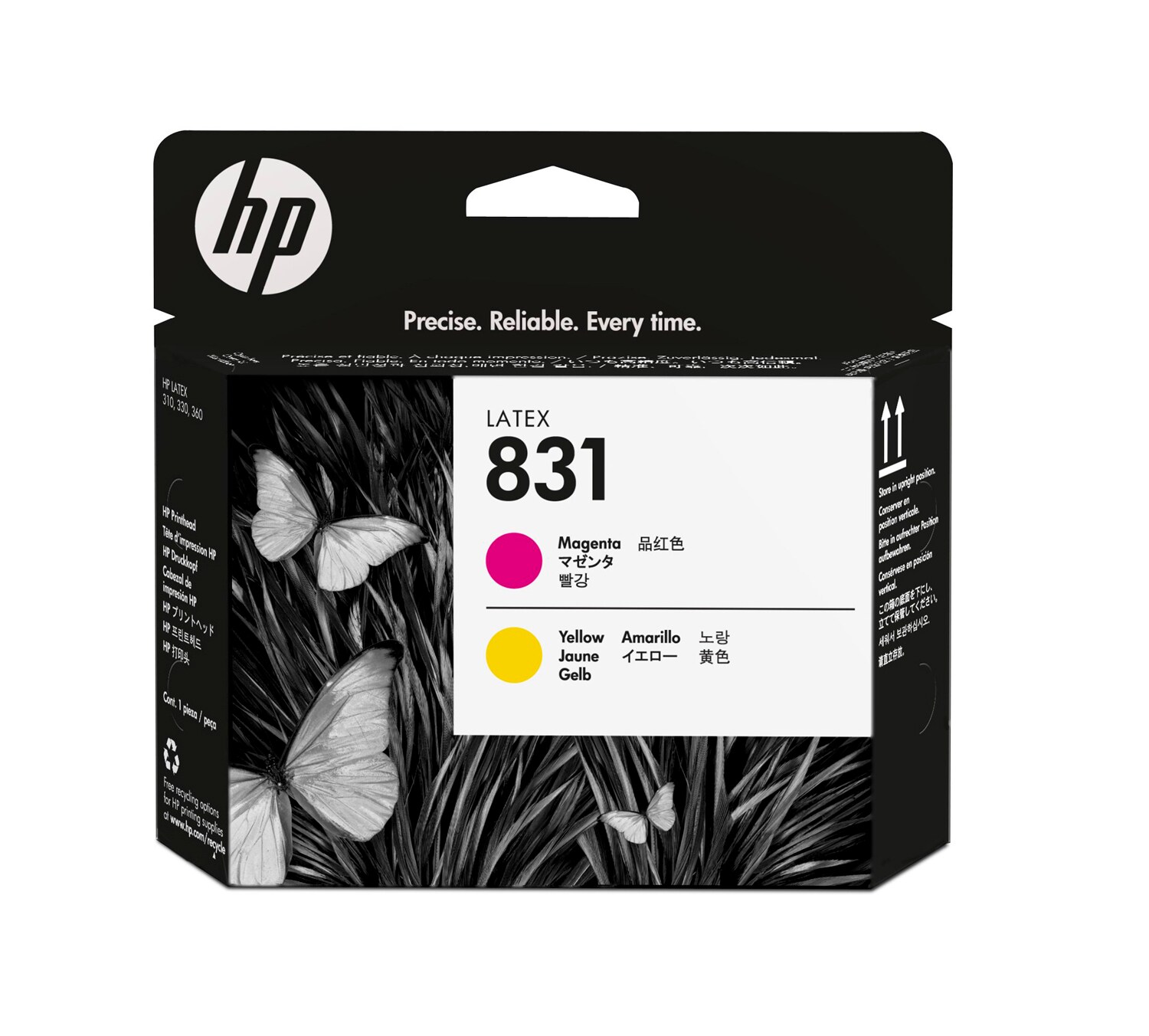

HP 831 Yellow/Magenta Latex Printhead (CZ678A)
Grow further—achieve high image quality and consistency on a wide substrate range and expand your outdoor and indoor application offering. Maintain efficient operation with easy, productive printing. Recycle HP 831 Latex Printheads.
Associate with printers – 315/335/365/560/570
SKU: HP CZ678A
Brand:
Technical Specification
| Color(s) of printing supplies | Yellow/magenta |
| Ink drop | 12 pl |
| Ink types | Latex |
| Operating temperature range | 59 to 86ºF |
| Storage temperature range | 41 to 104°F |
| Non-Operating Humidity Range | 20 to 90% RH |
| Minimum dimensions (W x D x H) | 1.1 x 5.6 x 5.2 in |
| Weight | 0.17 lb |
| UPC number | 887758088708 |
| Package dimensions (W x D x H) | 1.1 x 5.6 x 5.2 in |
| Package weight | 0.23 lb |
| Smaller master carton barcode | 10887758088705 |
| Case or master carton quantity | 24 |
| Case dimensions (case or master carton) | 14.4 x 11.7 x 5.9 in |
| Case weight (case or master carton, imperial) | 6.28 lb |
| Pallet barcode | 20887758088702 |
| Quantity per pallet | 1920 |
| Pallet dimensions | 40 x 48 x 51.9 in |
| Pallet weight | 531 lb |
| Country of origin | Made in Singapore |
| What’s in the box | Printhead |
| Warranty | Until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. |
Extended Information
| Cartridge Colors | Magenta; Yellow |
| Case dimensions (case or master carton) | 14.4 x 11.7 x 5.9 in |
| Case or master carton dimensions (W x D x H) | 366 x 297 x150 mm |
| Case or master carton quantity | 24 |
| Case weight (case or master carton) | 2.85 kg |
| Case weight (case or master carton, imperial) | 6.28 lb |
| Code name | Nexus |
| Color(s) of printing supplies | Yellow/magenta |
| Compatibility | HP Latex 110 Printer, HP Latex 310 Printer, HP Latex 330 Printer, HP Latex 360 Printer, HP Latex 560 Printer, HP Latex 570 Printer, HP Latex 115 Print and Cut Solution, HP Latex 315 Print and Cut Solution, HP Latex 335 Print and Cut Solution |
| Count of carton in pallet | 80 |
| Count of cartons per pallet layer | 10 |
| Count of layers in pallet | 8 |
| Country of origin | Made in Singapore |
| Image legal disclaimer | Product image may differ from actual product |
| Ink drop | 12 pl |
| Ink types | Latex |
| Minimum dimensions (W x D x H) | 1.1 x 5.6 x 5.2 in |
| Minimum dimensions (W x D x H) | 28 x 143 x 132 mm |
| Non-Operating Humidity Range | 20 to 90% RH |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 15 to 30ºC |
| Operating temperature range | 59 to 86ºF |
| Package count | 1 |
| Package dimensions (W x D x H) | 1.1 x 5.6 x 5.2 in |
| Package dimensions (W x D x H) | 28 x 143 x 132 mm |
| Package weight | 0.11 kg |
| Package weight | 0.23 lb |
| Pallet barcode | 20887758088702 |
| Pallet dimensions | 40 x 48 x 51.9 in |
| Pallet dimensions (W x D x H) | 1016 x 1219 x 1318 mm |
| Pallet weight | 241 kg |
| Pallet weight | 531 lb |
| Print head nozzles | 2112 |
| Print Resolution Technologies | TIJ 4.0 |
| Print technology | HP Thermal Inkjet |
| Print Technology | Ink |
| Printhead swath (inch) | 0.88 in |
| Printing Material Shelf Life | 18 months |
| Product count per unit | 1 |
| Product subgroup | Printheads |
| Quantity per pallet | 1920 |
| Selectability | 831 |
| Smaller master carton barcode | 10887758088705 |
| Storage temperature range | 41 to 104°F |
| Storage temperature range | 5 to 40°C |
| Supply type | Printheads |
| UNSPSC code | 44103110 |
| UPC number | 887758088708 |
| Warranty | Each HP ink cartridge, printhead, and related supply is warranted to be free from defects in materials and workmanship during the period of the warranty. This warranty pertains to any HP ink cartridge or printhead when used in its designated HP or authorized original equipment manufacturer (OEM) printing device. See the product manual for the printer to determine the correct ink cartridge, printhead, or related supply selection. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with. The coverage lasts until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HEWLETT-PACKARD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR SATISFACTORY QUALITY. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL HEWLETT-PACKARD BE LIABLE FOR ANY INCIDENTAL, DIRECT, CONSEQUENTIAL, SPECIAL, OR INDIRECT DAMAGES, OR LOST PROFITS FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. SOME COUNTRIES, STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. |
| Warranty | Until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. |
| Weight | 0.07 kg |
| Weight | 0.17 lb |
| What’s in the box | Printhead |
