Name: Graphtec FC9000-75
SKU: 16010
Availability: InStock

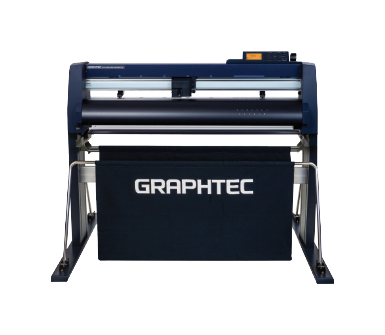

Graphtec FC9000-75

Graphtec’s FC9000 Series represents our most advanced and versatile roll-fed cutting plotter to date.

With its renowned reputation worldwide for dependable, high-precision cutting capabilities on both printed and unprinted materials, the FC Series serves as the ultimate finishing solution for a wide range of industries, including wide-format signage, apparel, and automotive applications.

The FC9000 Series features a newly developed feeding system and cutting head, resulting in even better cutting quality for thin and thick materials, ranging from delicate window tint to high-intensity reflective materials.

In addition, ARMS 8.0 introduces Graphtec’s Datalink Barcode System, which streamlines job loading and processing automatically, further enhancing the FC Series’ efficiency and productivity.

Brand:

Features

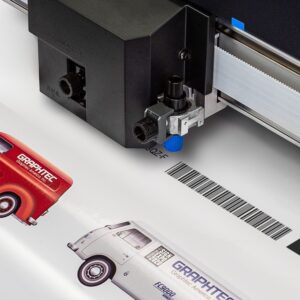

Datalink Barcode

By utilizing barcodes, you can save time and minimize the risk of production errors when handling numerous tasks with just a button press.

DataLink can accommodate any blend of RIP software and printer, along with the bundled software of Cutting Master and Graphtec Pro Studio.

The FC9000 can identify cutting data linked to barcodes from the user’s PC or USB flash memory, access the appropriate file, adjust the cutting settings, and initiate the cutting process automatically.

No flatbed?

No problem!

A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types.

Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective.

Three pressure settings ensure strong media hold-down without leaving track marks.

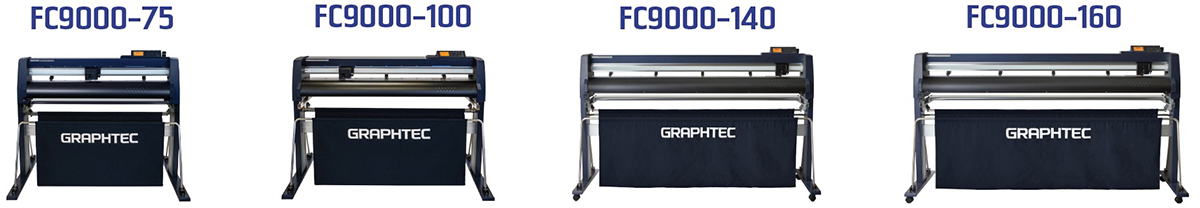

Model	FC9000-75	FC9000-100	FC9000-140	FC9000-160
CPU	32-bit CPU
Configuration	Grit rolling plotter
Drive method	Digital servo drive
Max. cutting speed	58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting force	Max. 600 gf in 48 steps
Axial acceleration	Max. 39.2 m/s² (4 G) in 8 steps
Max. cutting area (W x L) ^(*1)	30 in x 164 ft 762 mm x 50 m	42 in x 164 ft 1067 mm x 50 m	54 in x 164 ft 1372 mm x 50 m	64 in x 164 ft 1626 mm x 50 m
Guaranteed Precision Cutting Area ^(*1)	29.21 in x 50 ft	41 in x 32 ft 35.2 in x 50 ft	53 in x 32 ft 35.2 in x 50 ft	63 in x 32 ft 35.2 in x 50 ft
Mountable media width^(*2)	Min. 1.96 in Max. 36.22 in	Min. 1.96 in Max. 48.19 in	Min. 1.96 in Max. 60.20 in	Min. 1.96 in Max. 72.83 in
Max. cross cut width	30 in	42 in	54 in	64 in
Number of push rollers	2 rollers	3 rollers	4 rollers	4 rollers
Compatible roll media diameter	Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
Mechanical resolution	0.005 mm
Programmable resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Distance accuracy ^(*2)	Max. 0.1 mm or 0.1 % of plotted length
Repeatability ^(*2)	Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
Minimum character size	Approx. 5 mm alphanumeric (varies depending on character font and media)
Mountable number of tools	1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
Blade types	Supersteel (0.9 mm or 1.5 mm diameter)
Pen types	Water-based fiber-tip pen, Oil-based ballpoint pen
Pouncing tool type	Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types ^(*3)	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick
Compatible paper for pouncing	Regular paper from 0.06 to 0.13 mm thick
Cross-cutter	Built into the tool carriage
Perforation cutting	Supported (performed by force control)
Interface	USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
Condition settings	Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
Display	Graphic type LCD (3.7-inch, backlight)
Power source	100 V to 240 V AC, 50 / 60 Hz
Power consumption	AC100-240 V, 50/60 Hz
Operating environment	50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment	60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)	50″ x 28″ x 48″ 1270 x 711 x 1219 mm	61.8″ x 28″ x 48″ 1570 x 715 x 1219 mm	73.6″ x 28″ x 48″ 1870 x 711 x 1219 mm	84″ x 28″ x 48″ 2133 x 711 x 1219 mm
Weight ^(*8)	108 lbs.	123 lbs.	141 lbs. 178 lbs. /w take-up	154 lbs. 195 lbs. /w take-up
Included Software^(*6))	Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Compatible OS ^(*5)	Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)
Warranty	3 YEAR WARRANTY
Safety	PSE, UL/cUL, CE mark)
EMC	VCCI Class A, FCC Class A, CE mark

*1: Operated with Graphtec specified cutting conditions and media.

*2: There are conditions for operation when setting the media.

*3: HP-GL is a registered trademark of Hewlett-Packard Company.

*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.

*5: Graphtec does not support software / drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.

*6: Software is available for download from Graphtec’s website.

*8: Includes stand and basket.

Click to enlarge

Previous product

VersaOBJECTNEW MO-240

Back to products

Next product

Graphtec FCX2000

Add to wishlist

Description
Technical Specification
Reviews (0)

Description

Applications

Expand your capabilities with the highly versatile FC9000 series

Print & Cut Accuracy

Graphtec’s Advanced Registration Mark Sensing (ARMS) technology delivers precise Print & Cut results in addition to efficiency boosting features.

Easily accommodates reflective media

The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.

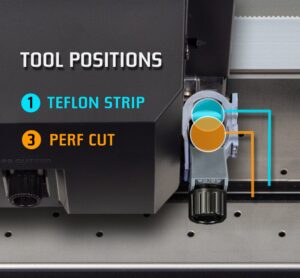

Contour & Die cut with ease

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

Technical Specification

Model	FC9000-75	FC9000-100	FC9000-140	FC9000-160
CPU	32-bit CPU
Configuration	Grit rolling plotter
Drive method	Digital servo drive
Max. cutting speed	58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting force	Max. 600 gf in 48 steps
Axial acceleration	Max. 39.2 m/s² (4 G) in 8 steps
Max. cutting area (W x L) ^(*1)	30 in x 164 ft 762 mm x 50 m	42 in x 164 ft 1067 mm x 50 m	54 in x 164 ft 1372 mm x 50 m	64 in x 164 ft 1626 mm x 50 m
Guaranteed Precision Cutting Area ^(*1)	29.21 in x 50 ft	41 in x 32 ft 35.2 in x 50 ft	53 in x 32 ft 35.2 in x 50 ft	63 in x 32 ft 35.2 in x 50 ft
Mountable media width^(*2)	Min. 1.96 in Max. 36.22 in	Min. 1.96 in Max. 48.19 in	Min. 1.96 in Max. 60.20 in	Min. 1.96 in Max. 72.83 in
Max. cross cut width	30 in	42 in	54 in	64 in
Number of push rollers	2 rollers	3 rollers	4 rollers	4 rollers
Compatible roll media diameter	Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
Mechanical resolution	0.005 mm
Programmable resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Distance accuracy ^(*2)	Max. 0.1 mm or 0.1 % of plotted length
Repeatability ^(*2)	Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
Minimum character size	Approx. 5 mm alphanumeric (varies depending on character font and media)
Mountable number of tools	1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
Blade types	Supersteel (0.9 mm or 1.5 mm diameter)
Pen types	Water-based fiber-tip pen, Oil-based ballpoint pen
Pouncing tool type	Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types ^(*3)	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick
Compatible paper for pouncing	Regular paper from 0.06 to 0.13 mm thick
Cross-cutter	Built into the tool carriage
Perforation cutting	Supported (performed by force control)
Interface	USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
Condition settings	Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
Display	Graphic type LCD (3.7-inch, backlight)
Power source	100 V to 240 V AC, 50 / 60 Hz
Power consumption	AC100-240 V, 50/60 Hz
Operating environment	50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment	60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)	50″ x 28″ x 48″ 1270 x 711 x 1219 mm	61.8″ x 28″ x 48″ 1570 x 715 x 1219 mm	73.6″ x 28″ x 48″ 1870 x 711 x 1219 mm	84″ x 28″ x 48″ 2133 x 711 x 1219 mm
Weight ^(*8)	108 lbs.	123 lbs.	141 lbs. 178 lbs. /w take-up	154 lbs. 195 lbs. /w take-up
Included Software^(*6))	Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Compatible OS ^(*5)	Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)
Warranty	3 YEAR WARRANTY
Safety	PSE, UL/cUL, CE mark)
EMC	VCCI Class A, FCC Class A, CE mark
